EPS Pre Expander Machine

Name: EPS Pre Expander Machine
Brand: S P ENGINEERING WORKS
Price: 2500000 INR
Availability: InStock

2500000 INR/Plant

Get a Price/Quote

Product Details:

Power Rating 3-phase 415V
Features Energy efficient, user-friendly interface, CE certified
Machine Type EPS Pre Expander
Control System PLC based with HMI
Operating Temperature Ambient to 90C
Frame Type Heavy duty welded steel frame
Noise Level 75 dB
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

EPS Pre Expander Machine Price And Quantity

Minimum Order Quantity 1 Plant
Price 2500000 INR/Plant

Working Speed Adjustable, up to 8 cycles/hour
Feed System Automatic loading via screw conveyor
Installation Area Required Approx. 10 m2
Barrel Material SS304 Stainless Steel
Steam Consumption 0.18-0.22 kg/kg EPS
Density Range 10-35 kg/m3 adjustable
Packing Type Export standard wooden packing
Steam Supply Connection DN40 flanged
Discharge System Pneumatic automatic discharge
Customizable Options Color, HMI language, cycle time
Level Sensor Infrared or ultrasonic level detection
Compressed Air Needed 0.4-0.6 Mpa, 0.2 m3/min
Operator Requirement Single operator, semi-supervised
Maintenance Schedule Quarterly recommended service check
Safety Protection Emergency stop switch, overpressure valve
After Sales Support Online troubleshooting and spare supply
Thermal Insulation Double-layer heat insulation for barrel

EPS Pre Expander Machine Product Specifications

Technology Automatic Steam Pre-expansion
Machine Type EPS Pre Expander
Control System PLC based with HMI
Operating Temperature Ambient to 90C
Power Rating 3-phase 415V
Features Energy efficient, user-friendly interface, CE certified
Cooling System Automatic fluidized bed with negative pressure cooling
Power 220-440 Volt (v)
Model No EPX-100/150
Voltage 380-415 V
Weight (kg) 2500 kg
Operating Type Automatic
Frame Type Heavy duty welded steel frame
Production Capacity 80-150 kg/h
Color Silver and Blue
Noise Level 75 dB
Accuracy Consistent bead density control 2%
Lubricating System Centralized automatic grease lubrication
Power Source Electricity
Dimension (L*W*H) 4000 x 1800 x 3200 mm
Pressure 0.6-0.8 Mpa
Product Type Expander Machine
Plastic Processed EPS (Expanded Polystyrene)
Frequency 50/60 Hz
Motor Power 5.5 kW
Usage & Applications Expanded Polystyrene bead pre-expansion for EPS foam molding
Connectivity Options Ethernet/USB for data export
Surface Treatment Painted
Drive Electric Motor

Working Speed Adjustable, up to 8 cycles/hour
Feed System Automatic loading via screw conveyor
Installation Area Required Approx. 10 m2
Barrel Material SS304 Stainless Steel
Steam Consumption 0.18-0.22 kg/kg EPS
Density Range 10-35 kg/m3 adjustable
Packing Type Export standard wooden packing
Steam Supply Connection DN40 flanged
Discharge System Pneumatic automatic discharge
Customizable Options Color, HMI language, cycle time
Level Sensor Infrared or ultrasonic level detection
Compressed Air Needed 0.4-0.6 Mpa, 0.2 m3/min
Operator Requirement Single operator, semi-supervised
Maintenance Schedule Quarterly recommended service check
Safety Protection Emergency stop switch, overpressure valve
After Sales Support Online troubleshooting and spare supply
Thermal Insulation Double-layer heat insulation for barrel

EPS Pre Expander Machine Trade Information

Supply Ability 100 Plant Per Day
Delivery Time 2 Months
Main Domestic Market All India

Product Description

Discover the EPS Pre Expander Machine-an industry-renowned, sought-after solution that delivers superlative performance at the lowest price, making it exceptionally affordable for businesses seeking unmatched value. Designed for precision, it features automatic loading, adjustable working speed up to 8 cycles/hour, and consistent bead density with 2% accuracy. Built with robust SS304 stainless steel and heavy-duty welded frame, this energy-efficient machine is CE certified and user-friendly. Ideal for EPS foam molding applications, it supports customizable options and offers reliable online after-sales support. Suitable for exporters, manufacturers, suppliers, and traders in India.

Application of EPS Pre Expander Machine

The EPS Pre Expander Machine is widely used at EPS molding plants, packaging units, and insulation product manufacturing sites. Its area of application spans from construction and packaging sectors to automotive and appliance industries, where precise expanded polystyrene beads are required. With its versatile adjustable density range, it adapts easily to various production lines and site requirements. The machine's reliable automation and efficiency make it the preferred choice for both small- and large-scale operations.

Certifications, Export Markets, and Dispatch Details

Our EPS Pre Expander Machine carries the prestigious CE certification, underlining its adherence to rigorous safety and quality standards. Dispatched promptly after order completion from our main Indian facility, machines are packaged in export-standard wooden cases for secure transit. We regularly export to Southeast Asia, Middle East, Africa, and Europe, utilizing leading FOB ports like Mumbai. Comprehensive after-sales support and online troubleshooting ensure smooth integration into diverse international markets.

FAQ's of EPS Pre Expander Machine:

Q: How does the EPS Pre Expander Machine adjust its working speed and density?

A: The machine offers adjustable working speed up to 8 cycles per hour and a density range of 10-35 kg/m3, which can be set through its PLC-based HMI control system for precise customization according to production needs.

Q: What safety features come with the EPS Pre Expander Machine?

A: It is equipped with an emergency stop switch, overpressure valve, and advanced level sensors (infrared or ultrasonic) to ensure safe and reliable operation during use.

Q: Where can the EPS Pre Expander Machine be installed and what is the area requirement?

A: The machine requires an installation area of approximately 10 square meters, making it suitable for both compact and larger production sites, such as packaging plants, insulation manufacturing units, and other industrial settings.

Q: What is the process for exporting and dispatching the EPS Pre Expander Machine?

A: Upon order completion, machines are carefully packaged in export-standard wooden packing and dispatched from India via major FOB ports, including Mumbai, to international customers.

Q: What are the main benefits of using this EPS Pre Expander Machine?

A: Users benefit from superlative energy efficiency, low noise operation, consistent bead quality, user-friendly interface, and a centralized automatic lubrication system. Exporters also appreciate robust after-sales support and customization options.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'EPS Machinery' category

EPS Shape Moulding Machine Price : 2500000 INR/Plant Minimum Order Quantity : 1 Technology : Other, Automatic Moulding Machine Type : EPS Moulding Machine Control System : Other, PLC Touch Screen Control Operating Temperature : 10C to 45C Power Rating : 18 kW max. Features : Energy Efficient, High Automation, Safety Interlocks, Quick Mold Change Weight (kg) : 25003000 kg Operating Type : Automatic Frame Type : Heavy Duty Steel Frame Noise Level : 75 dB Production Capacity : Up to 800 Moulds/Day Color : Green and Red Cooling System : Vacuum and WaterCooling Power : 220440 Volt (v) Model No : EPSSM4200 Voltage : 380V/415V Dimension (L*W*H) : 4200 mm x 2100 mm x 3100 mm Pressure : 0.61.0 MPa Product Type : Other, EPS Shape Moulding Machine Plastic Processed : Expanded Polystyrene (EPS) Frequency : 5060 Hz Accuracy : 0.5 mm Lubricating System : Centralized Grease Lubrication Power Source : Electricity Usage & Applications : EPS Shape Moulding, Packaging, Construction Blocks, Foam Components Connectivity Options : Ethernet/Online Diagnostics Surface Treatment : Painted Drive : Hydraulic & Pneumatic Motor Power : 5.5 kW

Send Inquiry

EPS Melting Machine Price : 2500000 INR/Plant Minimum Order Quantity : 1 Technology : Other, Thermal Melting Machine Type : EPS Melting Control System : Other, PLC Automatic Control Operating Temperature : Up to 200C Power Rating : 18 kW Features : Low Maintenance, Energy Saving, Compact Design Weight (kg) : Approx 1850 kg Operating Type : Automatic Frame Type : Robust Steel Noise Level : <80 dB Production Capacity : 100150 kg/h Color : Grey Cooling System : Water Cooling Power : 220440 Volt (v) Model No : EPSM3200 Voltage : 380V/415V Dimension (L*W*H) : 3200x1400x1800 mm Pressure : Standard atmospheric Product Type : Melting Machine, Other Plastic Processed : EPS (Expanded Polystyrene) Frequency : 50/60Hz Accuracy : High Lubricating System : Automatic Power Source : Electricity Usage & Applications : EPS Foam Recycling, Volume Reduction Connectivity Options : Digital Control Panel Surface Treatment : Painted Drive : Electric Motor Motor Power : 7.5 kW

Send Inquiry

Fully Automatic EPS Shape Moulding Machine Price : 2500000 INR/Plant Minimum Order Quantity : 1 Technology : Other, Steam Heating and Vacuum Cooling Machine Type : Shape Moulding Control System : Other, Programmable Logic Controller (PLC) Based Operating Temperature : Up to 100C Power Rating : 1825 kW Features : High Efficiency, Energy Saving, Easy to Operate, Centralized Steam Supply Weight (kg) : 3500 kg Operating Type : Automatic Frame Type : Heavy Duty Mild Steel Structure Noise Level : 80 dB Production Capacity : 5060 moulds per hour Color : Green and Red Cooling System : Water and Vacuum Cooling Power : 1825 kW Model No : EPSSM4200 Voltage : 380 V Dimension (L*W*H) : 4200 x 1700 x 2500 mm Pressure : 0.50.7 MPa Product Type : Other, Shape Moulding Machine Plastic Processed : EPS (Expanded Polystyrene) Frequency : 50 Hz Accuracy : 0.5 mm Lubricating System : Automatic Lubrication Power Source : Electricity Usage & Applications : EPS block and shape moulding for packaging and insulation industry Connectivity Options : HMI Touch Screen, Ethernet Surface Treatment : Painted Drive : Hydraulic and Pneumatic Motor Power : 5.5 kW

Send Inquiry

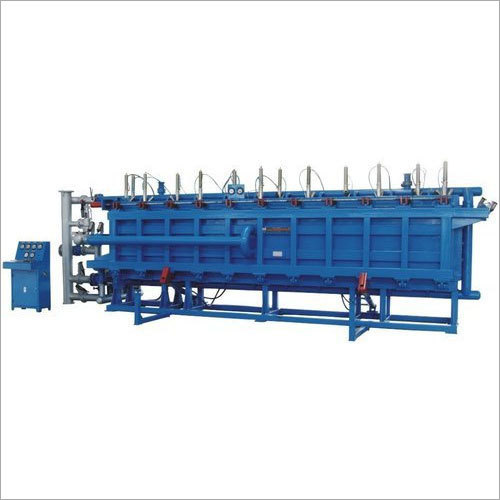

EPS Block Moulding Machine Price : 520 INR/Plant Minimum Order Quantity : 1 Technology : Other, Steam Heating, Vacuum Cooling Machine Type : Automatic Moulding Machine Control System : Other, PLC Control Panel Operating Temperature : 0C to 40C Power Rating : 23 kW Features : Energy Efficient, Robust Construction, Fast Cycle Time Weight (kg) : 35006000 kg Operating Type : Automatic Frame Type : Welded Steel Structure Noise Level : 85 dB Production Capacity : 200300 m3/day Color : Blue & Grey Cooling System : Vacuum and Water Cooling Power : 1825 kW Model No : EPSBM6500 Voltage : 380 V / 415 V Dimension (L*W*H) : 6500 x 2250 x 3000 mm Pressure : 0.60.8 MPa Product Type : Other, EPS Block Moulding Machine Plastic Processed : Expandable Polystyrene (EPS) Frequency : 50/60 Hz Accuracy : 1 mm Lubricating System : Centralized Grease Lubrication Power Source : Other, Electric Usage & Applications : Manufacturing EPS Foam Blocks for Packaging, Construction Connectivity Options : Ethernet/Remote Monitoring Surface Treatment : Other, Paint Coated Drive : Electric Motor Motor Power : 1525 kW
